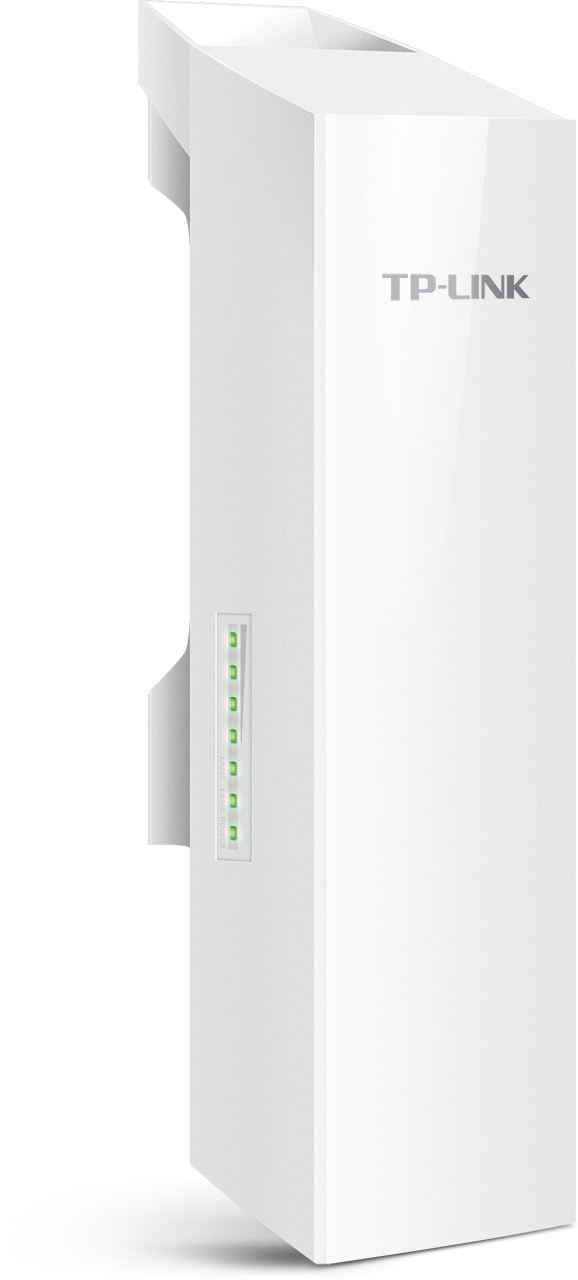

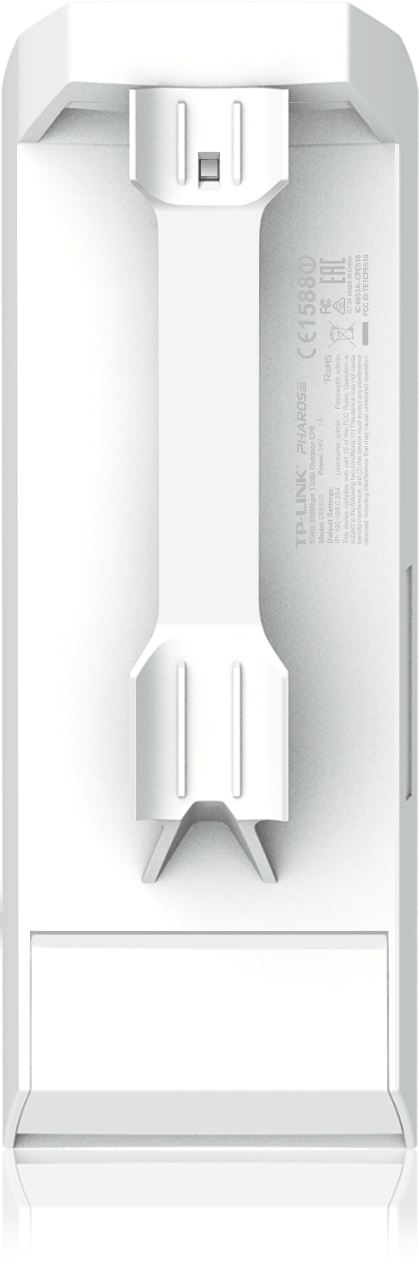

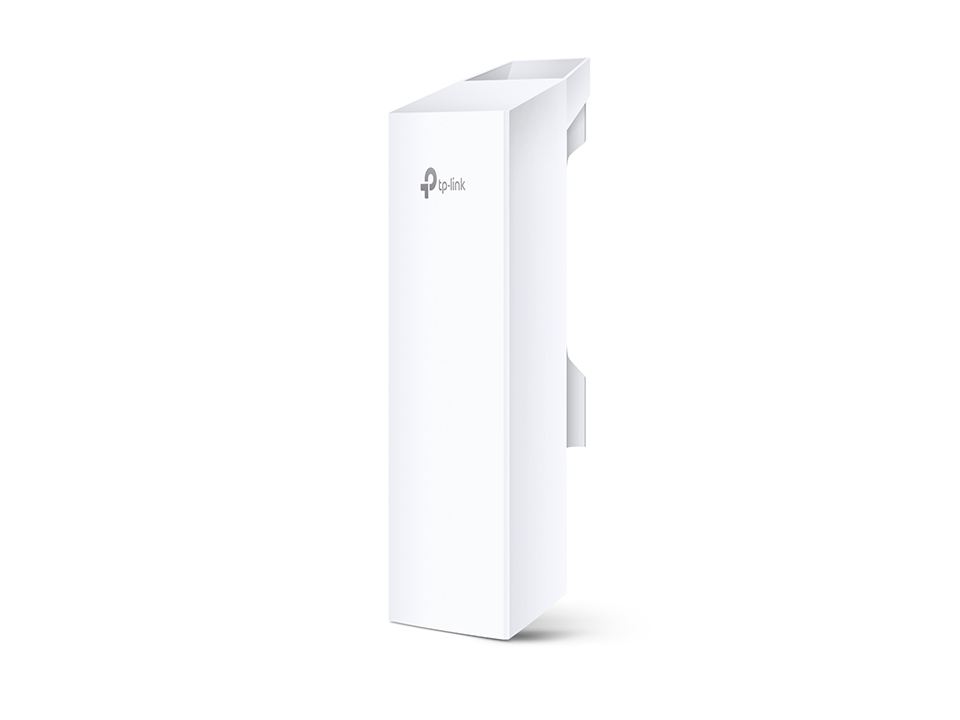

OMADA CPE510 300Mbps 5GHz Dış Mekan Access Point

DONANIM ÖZELLİKLERİ
İşlemci
Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Bellek
64MB DDR2 RAM, 8MB Flash
Arabirim
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Boyutlar ( W x D x H )
224 x 79 x 60 mm
Anten Tipi
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Koruma
15KV ESD Protection
6000V Lightning Protection
Güç Tüketimi
13 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power
source will be higher by some amount depending on the length of the
connecting cable.
Güç Kaynağı
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Enclosure
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartları
IEEE 802.11a/n (with Pharos MAXtream disabled)
Kablosuz Hızı
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Özel Protokol
TDMA Mode (with Pharos MAXtream enabled)
Frekans
5.15~5.85GHz
Note: Available operating frequency may vary depending on the
limitations of the countries or regions in which the device is used.
Alıcı Hassasiyeti
• 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
• 802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
İletim Gücü
27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels
depending on the limitations of the countries or regions in which the
device is used.
YAZILIM ÖZELLİKLERİ
Kablosuz Konfigürasyonlar
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-
bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Yönetim
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem Araçları
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Sistem Düzeyindeki Optimizasyonlar
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
DİĞERLERİ
Sertifika
CE, FCC, RoHS, IPX5
Paket İçeriği
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Sistem Gereksinimleri
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an
improved user experience: Google Chrome, Safari, and Firefox. IE
browsers are not recommended.
Ortam
Operating Temperature: -30°C~70°C (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
POE ADAPTÖR ÖZELLİKLERİ
Arabirimler
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Boyutlar (H X W X D)
110*57*33.5mm
Buton
Remote Reset Button
Çıkış
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Çıkış Voltajı
24VDC(+4,5pins; -7,8pins)
Giriş
100-240VAC, 50/60Hz
Giriş Akımı
0.8A Max @ 100VAC
Giriş Voltajı
100VA~240VAC @ 50Hz~60Hz
Güç Durum LED'leri
0~0.8A: Green
0.8A~1.0A: Red
Sertifikalar
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Verimlilik
>80%

Standart	IEEE 802.11N,IEEE 802.11A
Data transfer hızı	300MBPS
Radyo Frenkansı	5GHZ
Güvenlik	WPA2,WPA
Fonksiyon	ACCESS POINT
Çalışma Modu	ACCESS POINT
Splitter	YOK
Erişim mesafesi	100+
EAN	6935364070922
